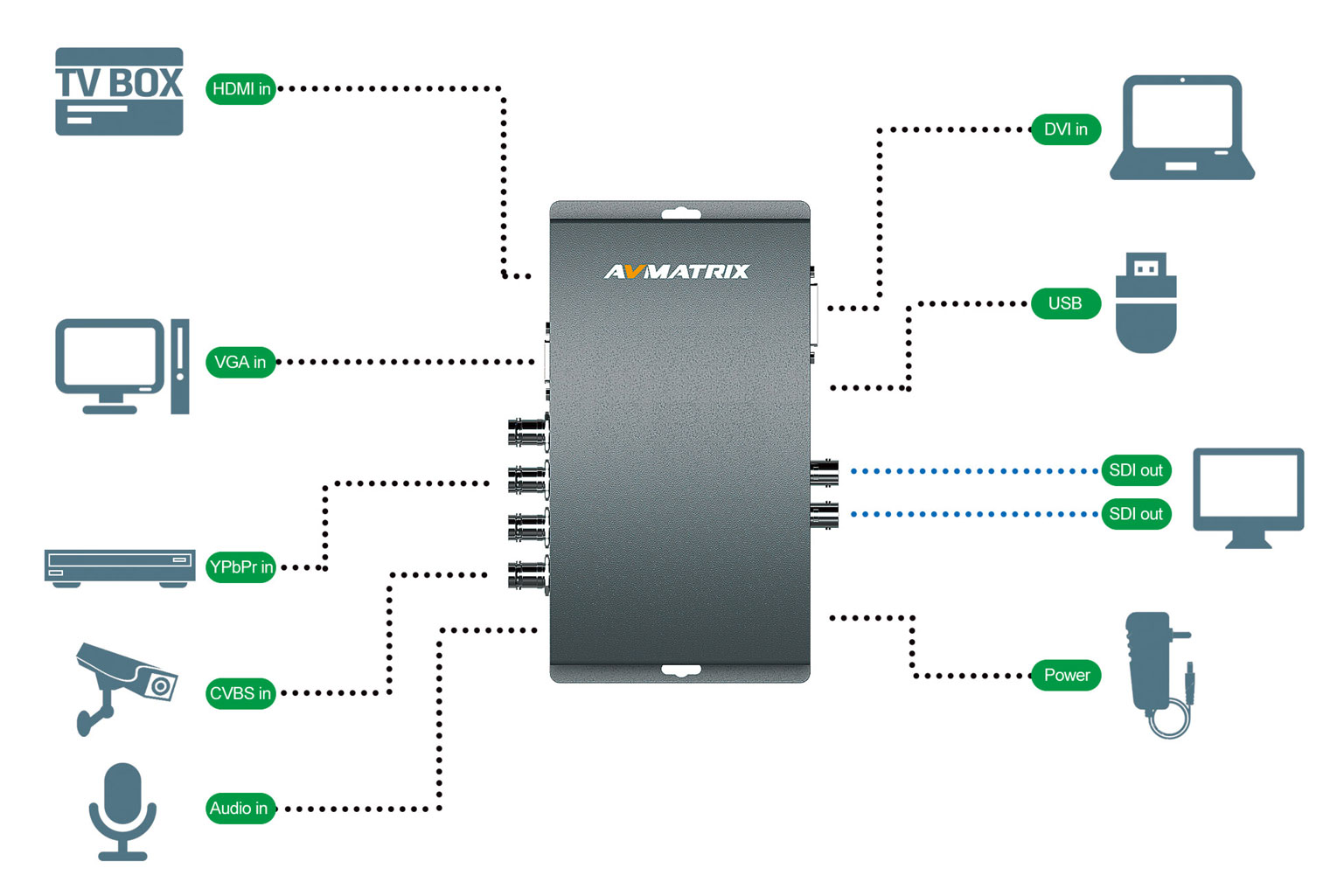

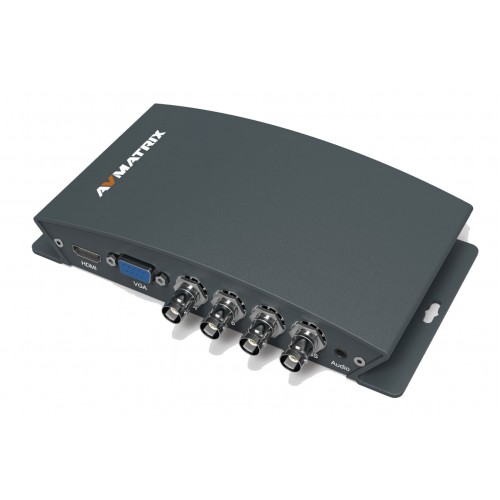

The AV Matrix SC5021 converts HDMI-YPbPr/CVBS/DVI/VGA input signals into 2 x SDI signals, and includes a USB port playing video from USB memory drives. The active input signal and scaling and frame rate of the SDI output is controllable by dual rotary DIP swithces. This model also supports the embedding of an external audio signal into SDI output signals.
| Input | |

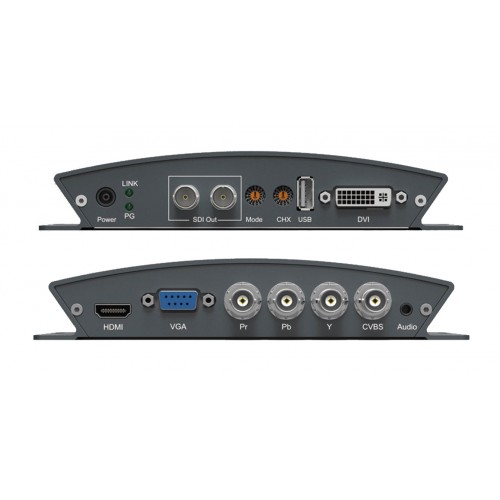

| Input Signal | HDMI x 1, YPbPr x 1, CVBS x 1, DVI x 1, VGA x 1, USB x 1 |
| SDI Output | |
| Output Format | 1080p @60Hz, 50Hz, 30Hz, 25Hz, 24Hz 1080i @ 60Hz, 50Hz 720p @ 60Hz, 50Hz, 30Hz, 25Hz 576i @ 50Hz 480i @ 50Hz |
| Bit Rate | 270Mbps ~ 2.97Gbps |
| Connector | BNC Comply IEC 169-8 standards |
| Signal Amplitude | 800mV +- 10% (75 ohm) |
| Impedance | 75 ohm |
| Analog Audio Input | |
| Input Signal | Analog Stereo Audio |
| Digital Sampling | 48K |
| Impedance | 600 ohm |
| Connector | 3.5mm earphone slot |
| Common Parameters | |
| Operating Voltage | DC 5-12 V |
| Power | <2W |
| Weight | 0.45kg |
| Dimensions | 182 x 95 x 30mm |
| Working Temperature | 0 ~ 50 degrees |
| Storage Temperature | -20 ~ 75 degrees |
| Working Humidity | 20% ~ 70% RH |
| Storage Humidity | 0% ~ 90% RH |
| Input | |
| Input Signal | HDMI x 1, YPbPr x 1, CVBS x 1, DVI x 1, VGA x 1, USB x 1 |
| SDI Output | |
| Output Format | 1080p @60Hz, 50Hz, 30Hz, 25Hz, 24Hz/ 1080i @ 60Hz, 50Hz/ 720p @ 60Hz, 50Hz, 30Hz, 25Hz/ 576i @ 50Hz/ 480i @ 50Hz |
| Bit Rate | 270Mbps ~ 2.97Gbps |
| Connector | BNC Comply IEC 169-8 standards |
| Signal Amplitude | 800mV +- 10% (75 ohm) |
| Impedance | 75 ohm |
| Analog Audio Input | |
| Input Signal | Analog Stereo Audio |
| Digital Sampling | 48K |
| Impedance | 600 ohm |
| Connector | 3.5mm earphone slot |
| Common Parameters | |
| Operating Voltage | DC 5-12 V |
| Power | <2W |
| Weight | 0.45kg |
| Dimensions | 182 x 95 x 30mm |
| Working Temperature | 0 ~ 50 degrees |
| Storage Temperature | -20 ~ 75 degrees |
| Working Humidity | 20% ~ 70% RH |
| Storage Humidity | 0% ~ 90% RH |
