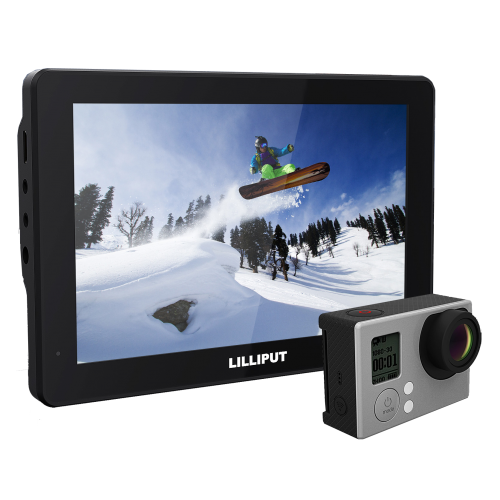

The MoPro7 sports monitor is a 7 inch 16:9 LCD field monitor optimised for use with the GoPro Hero 3+ and 4 series cameras. Using a built in battery pack for both monitor and camera and superb picture quality it's ideal for extreme sports enthusiasts and spectators.
 |  |

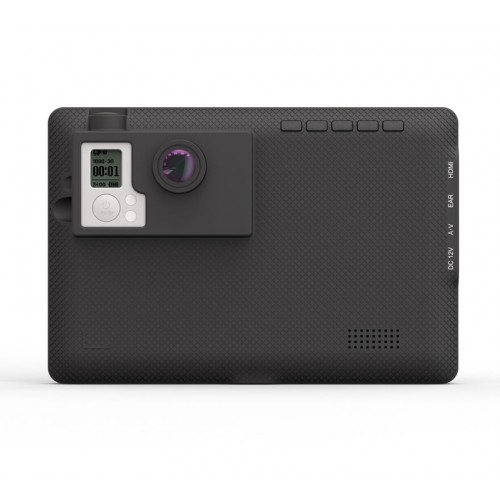

The MoPro7 features an internal battery pack.... | ... and space to install the GoPro Hero camera which can be powered by the same battery pack. With 2 interchangable back plates the system can operate as both extreme sports camera monitor or as a standard DSLR camera monitor |

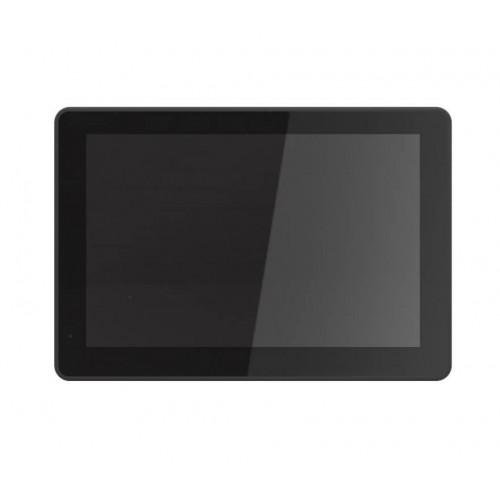

 | 7” IPS monitor with widescreenThe Lilliput MoPro7 monitor has an ultra high resolution, widescreen IPS type LCD. This crisp display makes it all the easier to review your data |
 | IPS screen gives 720p native resolutionThe MoPro7 features an ultra high native resolution of 1280x800 pixels with intelligent scaling applied when receiving higher resolution HDMI signals. This high resolution gives an extremely detailed image potentially avoiding problems in the post-production environment making it an ideal choice for the discerning professional user. |
 | 800:1 Contrast ratioThe MoPro7 features an ultra high 800:1 contrast ratio as a result of its advanced LED backlight design. As a result the image will portray an accurate rendition of the composition avoiding issues in post-production. |

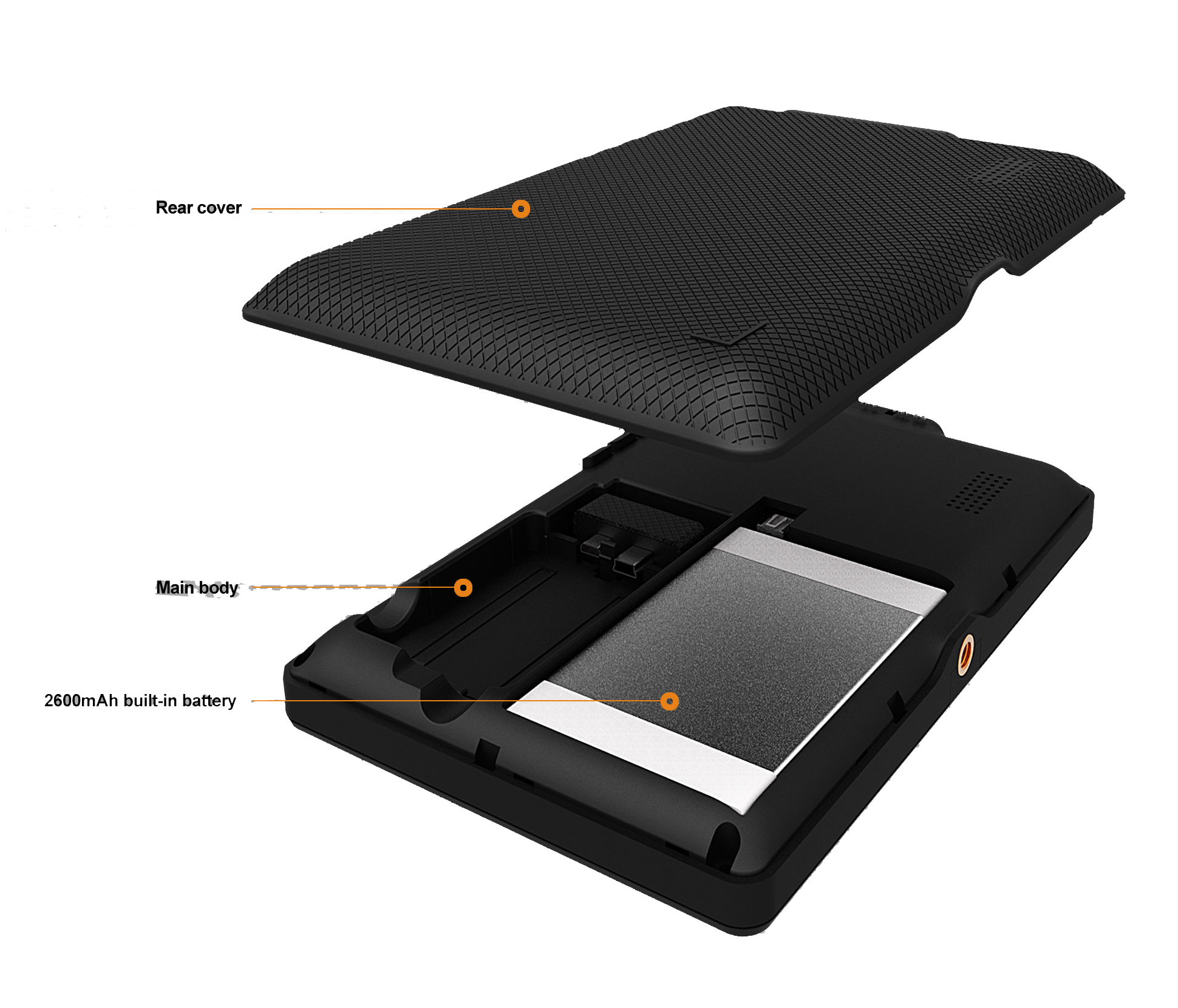

 | Built in battery packThe MoPro7 has a built in battery for use in the field which is rechargable on it's own interna; loop recharge system. |
| Lilliput MoPro7 Instruction Manual | Download |
| Lilliput MoPro7 CE Certificate | Download |
| Lilliput MoPro7 Mechanical Drawing | Download |
| Lilliput MoPro7 Mechanical Drawing (with GoPro) | Download |
| Monitor Specification | |
| Screen Size (diagonal) | 7 inch |
| Aspect Ratio | 16:9 |
| Native Resolution | 1280 x 800 |
| Viewing Angle (degrees) | 178/178 |
| Brightness Ratio (cd/m2) | 400 |
| Contrast Ratio | 800:1 |
| Backlight | LED |
| Video Inputs | HDMI Type C, HDMI Type D (internal for GoPro camera) |
| Audio Outputs | Built in Speaker |
| Touchscreen Technology | None |
| Input Power | 12V DC |
| Operating Temperature | -20~60 Degrees |
| Mounting Options | 1/4 inch BSW |
| Contents Of Box | |
| Product | 1 x MoPro7 monitor |
| Connection Cables | HDMI Cable |
| Power Adaptor | 1x DC 12V plug (available in UK, US and EU style) |
| Mounts and stands | 1 x Hot shoe mount |
| Additional accessories | |
| Dimensions | |
| Height (mm) | 121 |
| Width (mm) | 179 |
| Depth (mm) | 21 |
| Weight (g) | 420 |
