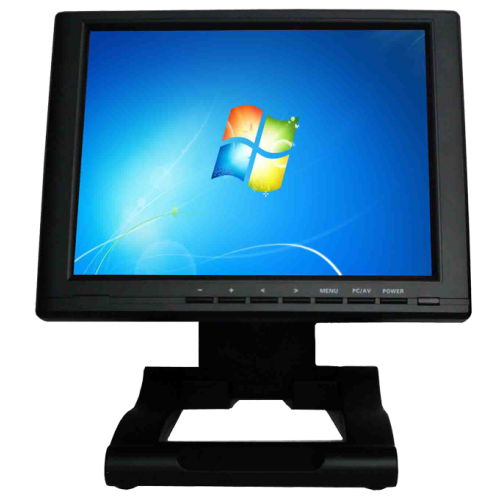

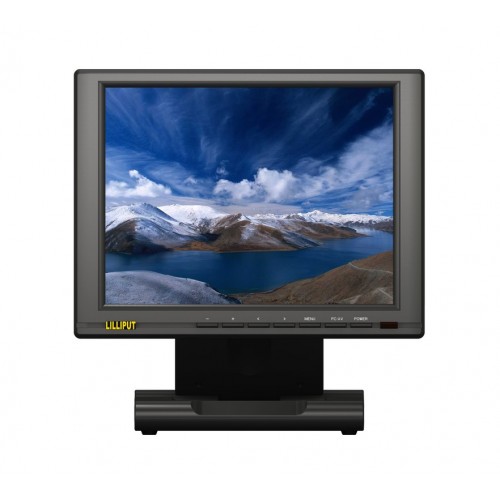

The Lilliput FA1046-NP/C is a 10.4" 4:3 TFT LCD monitor with HDMI, DVI, VGA and composite inputs.

PLEASE NOTE - BEFORE ORDERING

PLEASE CHECK THAT YOUR CAMERA'S OUTPUT FEED FREQUENCY IS COMPATIBLE WITH THE INPUT FREQUENCIES OF THIS MONITOR BY CLICKING HERE FOR OUR LIST OF MONITORS AND SUPPORTED FREQUENCIES TYPES (FOR BLACKMAGIC CAMERA OWNERS AND OTHER 25FPS CAMERA TYPES)

	10 inch monitor with standard aspect ratio The FA1046 is a 10 inch monitor with a 4:3 aspect ratio, similar to the regular 17" or 19" monitor you use with your desktop computer. The standard 4:3 aspect ratio is well suited to applications that require a non-wide screen aspect ratio, such as CCTV monitoring and certain broadcast applications.
	HDMI, DVI, VGA, YPbPr, Composite and S-Video Unique to the FA1046, it also features a YPbPr video input (which is used for receiving analogue component signals) and an S-Video input (popular with legacy AV equipment). We recommend the FA1046 to customers who plan to use their monitor with a range of AV equipment, as this 10 inch monitor is certain to support it.

	Perfect CCTV monitor You won't find a more suitable CCTV monitor than the FA1046. The 4:3 aspect ratio and wide selection of video inputs means this 10 inch monitor will work with any CCTV equipment, including DVRs.

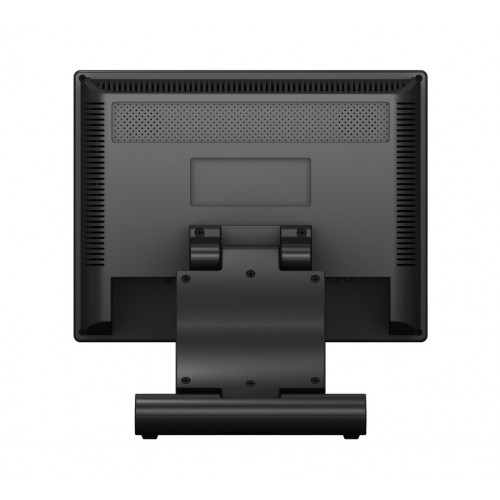

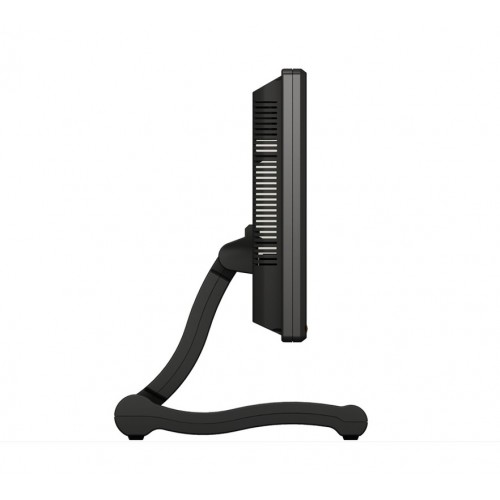

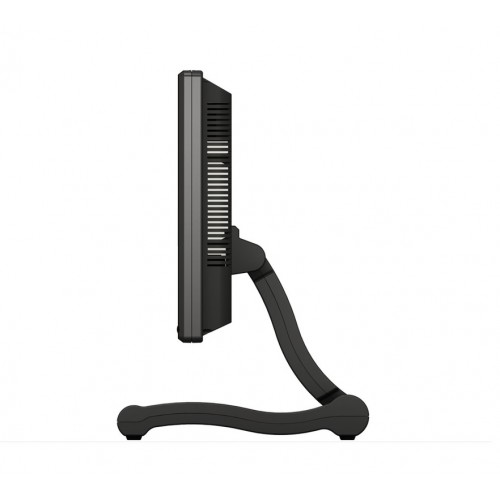

	Desktop stand and VESA 75 mount The built-in desktop stand allows customers to set up their FA1046 10 inch monitor right away. This is perfect for customers who want to set their 10 inch monitor up without making any mounts. The desktop stand can be detached allowing customers can mount their 10 inch monitor using the VESA 75 standard mounts.

Lilliput FA1046 Instruction Manual	Download
Lilliput FA1046 CE Certificate	Download
Lilliput FA1046 LCD Panel Datasheet	Download
Lilliput FA1046 Mechanical Drawing	Download

Q. What connections can be used to attach my equipment to this monitor?

A. The FA1046-NP/C 4:3 aspect ratio monitor can attach using an HDMI connector, a DVI connector, Composite connections, a VGA connector, or an S-Video cable. All these cables connect directly onto the underside of the monitor at the rear, and all these cables are included for use straight out of the box.

Q. Does this unit have a touch screen?

A. No – however the sister product to this model – the FA1046-NP/C/T does have a touch screen.

Q. What is the power requirement of this monitor?

A. The power supply included with the unit is a 12V 2A standard wall socket connector. The unit itself uses 9-24V, and the current usage is 650mA. Power consumption is <9W for this unit.

Q. Can I use my camera batteries to power this monitor?

A. This monitor does not support battery power natively. If you’d like to use battery power, we supply alternative models 665GL-70NP/HO/Y, 667GL-70NP/H/Y, and 668GL-70NP/H/Y which may be applicable for your needs.

Q. What are the monitor dimensions?

A. The monitor dimensions are – Width: 260mm, Height: 200mm, Depth: 70mm (with stand attached)

Q. What resolutions does the FA1046-NP/C support?

A. The native resolution is 800 x 600 pixels, however it will support inputs (through scaling) of 480p (640 x 480), 576i (PAL resolution interlaced), 720p (1280 x 720 progressive scan), 1080i (1920 x 1080 interlaced) using the supplied DVI cable, and 1080p (1920 x 1080 progressive scan) using the supplied HDMI cable. It should be noted that some resolutions may result in black “widescreen” bars or image stretching anomalies.

Q. How many pixels does the panel have?

A. The panel has a native resolution of 800 x 600, giving 480000 pixels on screen.

Q . What does the unit weigh?

A. The weight of the unit is 1428g including the built in stand

Q. Can I attach headphones to this monitor for sound?

A. No – however the monitor does have a small speaker for cursory sound monitoring if required. It should be noted that the monitor will only play sound if the source connection is HDMI – the other connectivity cables do not pass sound into the system, only image.

Monitor Specification
Screen Size (diagonal)	10.4 inch
Aspect Ratio	4:3
Native Resolution	800×600 (native)
Maximum Resolution	1920×1080 (maximum)
Viewing Angle (degrees)	130º x, 110º y
Brightness Ratio (cd/m2)	250
Contrast Ratio	400:1
Backlight	CCFL
Video Inputs	HDMI, DVI, VGA, YPbPr, S-Video, Composite
Audio Outputs	<1.2W Internal Speaker
Touchscreen Technology	None
Input Power	12V DC
Operating Temperature	-20 to 60 deg C
Mounting Options	VESA 75, Vertical Slot Mount
Contents Of Box
Product	1 x FA1046-NP/C
Connection Cables	1x HDMI cable, 1x VGA cable, 1 x USB cable
Power Adaptor	1x DC 12V plug (available in UK, US and EU style)
Mounts and stands	Built in desktop stand
Additional accessories	1x Full-function infrared remote control with battery
Dimensions
Height (mm)	200
Width (mm)	260
Depth (mm)	70
Weight (g)	1474
