The Lilliput TM-1018/O/P is our 10.1 inch HDMI field monitor designed for use with DSLR and higher standard cameras. WIth a very high quality panel, and featuring a capacitive touchscreen function to access and operate the internal settings functions, the TM1018-O/P is the high watermark for the Lilliput monitor range.

PLEASE NOTE - BEFORE ORDERING

PLEASE CHECK THAT YOUR CAMERA'S OUTPUT FEED FREQUENCY IS COMPATIBLE WITH THE INPUT FREQUENCIES OF THIS MONITOR BY CLICKING HERE FOR OUR LIST OF MONITORS AND SUPPORTED FREQUENCIES TYPES (FOR BLACKMAGIC CAMERA OWNERS AND OTHER 25FPS CAMERA TYPES)

black magic pocket cinema camera compatible

Black Magic Pocket Cinema Camera Compatible

This monitor is fitted with the 2674 processing chip - which gives a greater range of input frequencies that can be used. For the full range of compatible frequencies please click here

	10.1" Widescreen panel The 16:9 widescreen aspect ratio makes the TM-1018 ideal for a variety of AV applications. You can find the TM-1018 in TV broadcast rooms, audio-visual installations, and it is ideally suited as a preview monitor with professional camera crews for both on-camera and Video Village installations..
	IPS LED screen Lilliput are proud to announce the use of the latest IPS screen panels in the Lilliput TM1018/O/P. IPS screen panels allow for much greater pixel pitch, which gives wider viewing angles and superb base resolutions of 1280 x 800 - allowing upscaling to a full 1080p HD signal
	800:1 Contrast ratio for crisp sharp colours The TM-1018 boasts a rich clear and sharp picture thanks to a high contrast ratio and LED backlight. The onboard matt LCD display means that all colours are well represented, and that there are no reflections evident on the screen. What's more, LED technology brings great benefits in terms of low power consumption, "instant-on" back lighting, and consistent brightness over years and years of use
	Made for DSLR cameras The TM-1018-O/P has a large range of compatibility, with all major DSLR camera types supported using HDMI input Our Field Monitors allow for confident shot taking allowing you to see the shot in it's full glory before taking.

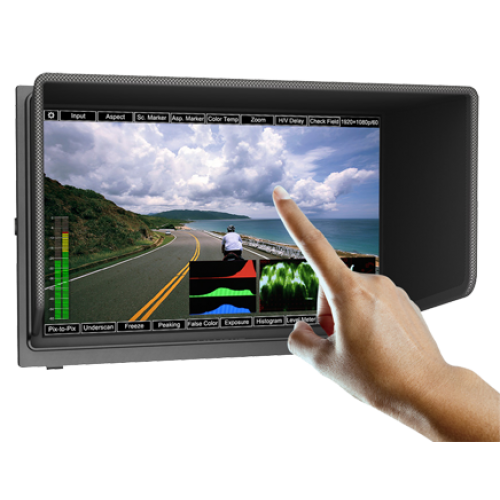

	Advanced camera functions on the fly Packed with advanced features usually only offered on more expensive field monitors, Features on this unit include Including Peaking, Histograms, False Colour Filtering, Exposure, and much more!
	HDMI passthrough The TM-1018 includes an HDMI-output feature which allows allows customers to duplicate the video content onto a second monitor - no annoying HDMI splitters required. The second monitor can be any size and picture quality will not be affected.
	Optional battery plates Lilliput's ever popular battery plate options allow battery compatibility with 90% of major battery types. Included are a choice of 2 from SONY, PANASONIC, and 2 types of CANON, with for an extra charge ANTON BAUER and V-TYPE plates.
	Audio monitoring on device Lilliput TM-1018 features an on-screen volume level, ideal for monitoring any excessive background noise or volume peaks whilst filming video and connecting via HDMI.

Lilliput TM1018 Instruction Manual	Download
Lilliput TM1018 CE Certificate	Download
Lilliput TM1018 Mechanical Drawing	Download

Monitor Specification
Screen Size (diagonal)	10.1 inch
Aspect Ratio	16:9
Native Resolution	1280 x 800 (native)
Maximum Resolution	up to 1920 x 1080
Viewing Angle (degrees)	170/170
Brightness Ratio (cd/m2)	350
Contrast Ratio	800:1
Backlight	LED

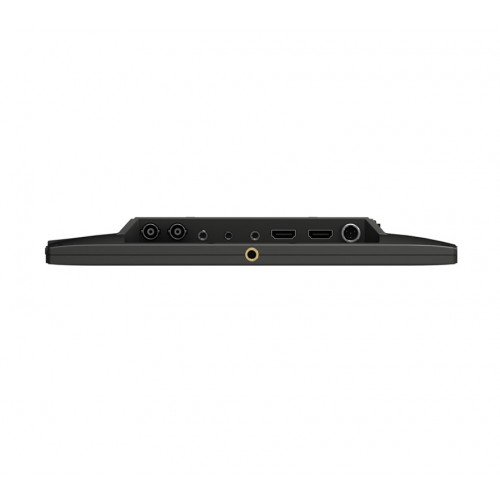

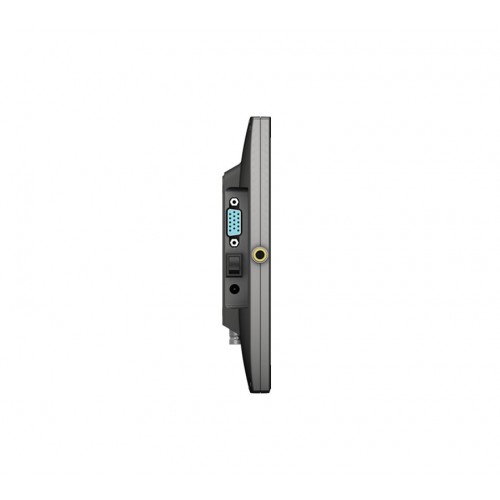

Video Inputs	1 x HDMI, 1 x VGA, 1 x Composite (RCA)
Video Outputs	1 x HDMI, 1 x Composite (RCA)
Audio Outputs	3.5mm Jack output, 1 x Built in speaker (<1W)

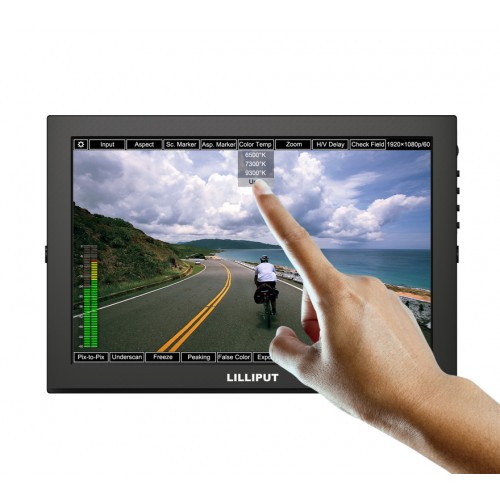

Touchscreen Technology	Multitouch capacitive touchscreen allows for control of internal monitor settings
Input Power	12V DC
Operating Temperature	-20 - 60 degrees
Contents Of Box
Product	1 x TM1018/O/P monitor
Connection Cables	1 x Mini HDMI to HDMI cable
Power Adaptor	12V UK, EU, AUS, or U.S upon request
Mounts and stands	Shoe mount adaptor
Additional accessories	Sunshade, battery plates
Dimensions
Height (mm)	170
Width (mm)	250
Depth (mm)	29.6
Weight (g)	630
