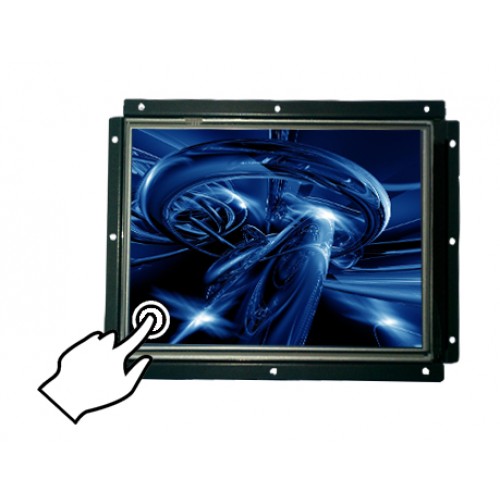

The Lilliput OF1046/C/T monitor is a 10” widescreen metal open framed LCD monitor with HDMI, VGA and composite video input. Designed for integration into custom projects and industrial applications and comes with 4 wire resistive touchscreen

	10” 4:3 LCD open frame monitor The Lilliput OF1046/C/T monitor has a high resolution, 4:3 LCD. Suitable for all kinds of installation and custom projects
	Compatible with full 1080 HDMI signals The OF1046/C/T is designed to accept full HDMI signal, allowing you to create custom multimedia stations in smaller form factors than ever before
	Full ranges of inputs designed around computer and CCTV systems Use the OF1046/C/T in a wide range of appications thanks to it's range of inputs including HDMI, VGA and composite video
	Steel enclosure with flexible mounting options The OF1046/C/T is mounted within a mild steel frame giving a rugged feel to this monitor. The unit can be flush mounted to a surface using the mounting points on the front, or mounted more traditionally on a VESA 75 mounting point on the rear.
	Touchscreen integrated The OF1046/C/T has a built in resistive touchscreen to give even more options to installers and systems developers
	Raspberry Pi compatible touchscreen monitor For a small form factor touch screen computer consider the OF1046/C/T and our pre-installed software for plug and play touchscreen functions for the Raspberry Pi

	Entertainment and multimedia. Lilliput monitors are ideal for small form factor multimedia systems such as karaoke systems, DJ setups and as confidence monitors for home cinema systems
	Industrial and Agriculture. Lilliput open frame units are ideal for integration into assembly lines and automation systems for monitoring and interaction.
	Smart Home systems. Lilliput open frames can be integrated into smart home systems and CCTV loops for greater control and functionality.
	Vehicle integration. Open frame monitors offer a great deal of flexibility for installing within vehicle and car computer systems.

Lilliput OF1046 frame mechanical drawing

Download

Please note: Technical drawings are provided as a guide only and should not be used for any precision design or estimate

Monitor Specification
Screen Size (diagonal)	10.4 inch
Aspect Ratio	4:3
Native Resolution	800×600 (native)
Maximum Resolution	1920×1080 (maximum)
Scan Frequency (Hz)	60-72
Viewing Angle (degrees)	130º x, 110º y
Brightness Ratio (cd/m2)	250
Contrast Ratio	400:1
Backlight	CCFL
Video Inputs	HDMI, DVI, VGA, YPbPr, S-Video, Composite
Audio Outputs	Internal Speaker
Touchscreen Technology	4 wire resistive
Input Power	12V DC
Operating Temperature	-20 to 60 deg C
Mounting Options	Open Frame
Contents Of Box
Product	1 x OF1046-NP/C/T
Connection Cables	1x HDMI cable, 1x VGA cable, 1 x USB cable
Power Adaptor	1x DC 12V plug (available in UK, US and EU style)
Mounts and stands	Built in desktop stand
Additional accessories	1x Full-function infrared remote control with battery
Dimensions
Height (mm)	200
Width (mm)	260
Depth (mm)	70
Weight (g)	1474
