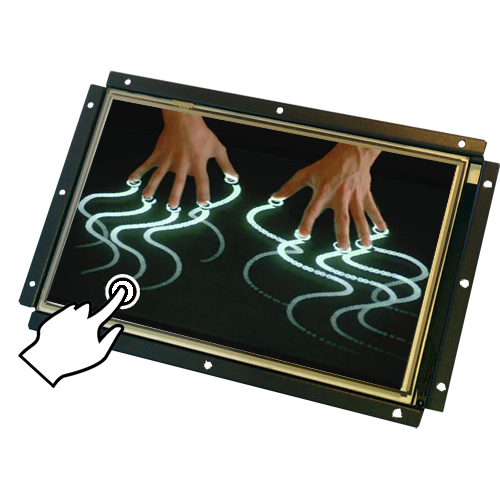

The Lilliput OF1012/C/T monitor is a 10” widescreen metal open framed LCD monitor with HDMI, VGA and composite video input. Designed for integration into custom projects and industrial applications and comes with the latest multitouch capactitive touchscreen technology as seen on many leading smart phones

	10” monitor with widescreen The Lilliput OF1012/C/T monitor has an high resolution, widescreen LCD. Suitable for all kinds of installation and custom projects
	Compatible with full 1080 HDMI signals The OF1012/C/T is designed to accept full HDMI signal, allowing you to create custom multimedia stations in smaller form factors than ever before
	Full ranges of inputs designed around computer and CCTV systems Use the OF1012/C/T in a wide range of appications thanks to it's range of inputs including HDMI, VGA and composite video
	Steel enclosure with flexible mounting options The OF1012/C/T is mounted within a mild steel frame giving a rugged feel to this monitor. The unit can be flush mounted to a surface using the mounting points on the front, or mounted more traditionally on a VESA 75 mounting point on the rear.
	Capacitive Touchscreen integrated The OF1012/C/T has a built in capacitive touchscreen giving multitouch operation and control to custom installers

	Entertainment and multimedia. Lilliput monitors are ideal for small form factor multimedia systems such as karaoke systems, DJ setups and as confidence monitors for home cinema systems
	Industrial and Agriculture. Lilliput open frame units are ideal for integration into assembly lines and automation systems for monitoring and interaction.
	Smart Home systems. Lilliput open frames can be integrated into smart home systems and CCTV loops for greater control and functionality.
	Vehicle integration. Open frame monitors offer a great deal of flexibility for installing within vehicle and car computer systems.

Lilliput OF1012 frame mechanical drawing

Download

Please note: Technical drawings are provided as a guide only and should not be used for any precision design or estimate

Monitor Specification
Screen Size (diagonal)	10 inch
Aspect Ratio	16:9
Native Resolution	1024×600 (native)
Maximum Resolution	1920×1080 (maximum)
Pixel Pitch (mm)	0.21525×0.21525
Scan Frequency (Hz)	60-72
Response Time (ms)	15
Viewing Angle (degrees)	140º x, 110º y
Brightness Ratio (cd/m2)	250
Contrast Ratio	500:1
Backlight	LED
Video Inputs	HDMI, DVI, VGA, composite
Touchscreen Technology	Capacitive touchscreen supporting up to 13 simultaneous touch points
Input Power	DC 12V
Mounting Options	VESA 75, open frame mounting
Contents Of Box
Product	1x Lilliput OF1012/C/T
Connection Cables	1x HDMI Touch cable, 1x Composite break-out cable, 1x VGA touch breakout cable
Power Adaptor	1x DC 12V plug (available in UK, US and EU style)
Additional accessories	1x Full-function infrared remote control with battery
Dimensions
Height (mm)	196
Width (mm)	269
Depth (mm)	46
Weight (g)	430
