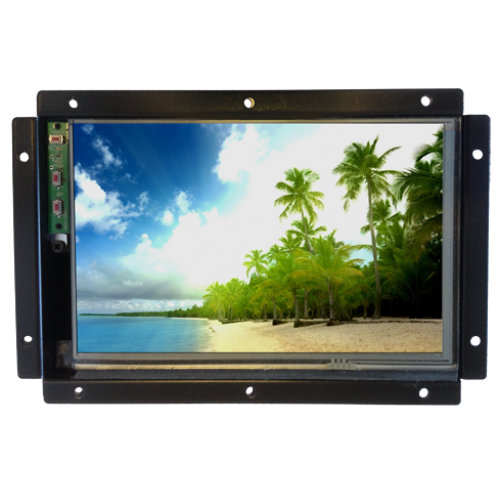

The Lilliput OF70/C/T is a 7 inch openframe 16:9 LCD touchscreen monitor with USB input

	7” monitor with widescreen The Lilliput OF70/C/T monitor has a widescreen LCD panel suited for multimedia use

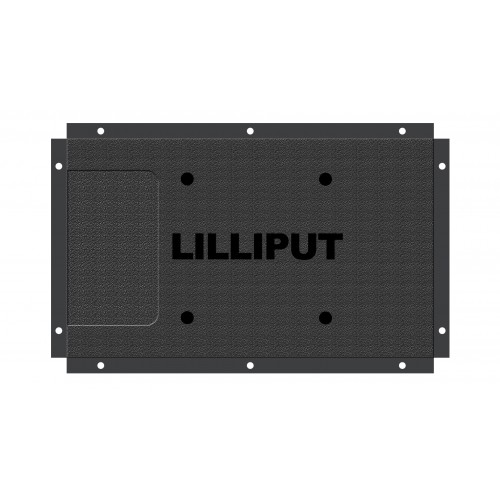

	Steel enclosure with flexible mounting options  The OF70/C/T is mounted within a mild steel frame giving a rugged feel to this monitor. The unit can be flush mounted to a surface using the mounting points on the front, or mounted more traditionally on a VESA 75 mounting point on the rear.
	Touchscreen integrated The OF70/C/T has a built in resistive touchscreen to give even more options to installers and systems developers

---

	Entertainment and multimedia. Lilliput monitors are ideal for small form factor multimedia systems such as karaoke systems, DJ setups and as confidence monitors for home cinema systems
	Industrial and Agriculture. Lilliput open frame units are ideal for integration into assembly lines and automation systems for monitoring and interaction.
	Smart Home systems. Lilliput open frames can be integrated into smart home systems and CCTV loops for greater control and functionality.
	Vehicle integration. Open frame monitors offer a great deal of flexibility for installing within vehicle and car computer systems.

Monitor Specification
Screen Size (diagonal)	7 inch
Aspect Ratio	16:9
Native Resolution	800×480 (fixed)
Maximum Resolution
Pixel Pitch (mm)	0.0635×0.190
Scan Frequency (Hz)	60-72
Response Time (ms)	15
Viewing Angle (degrees)	140º x, 120º y
Brightness Ratio (cd/m2)	300
Contrast Ratio	250:1
Backlight	LED
Video Inputs	USB
Video Outputs
Audio Outputs
Touchscreen Technology	4 wire resistive
Input Power	USB 5V, 500mA
Operating Temperature
Mounting Options
Contents Of Box
Product	1x OF70/C/T
Connection Cables	1x USB to Mini USB Cable
Power Adaptor
Mounts and stands
Additional accessories
Dimensions
Height (mm)	123
Width (mm)	188
Depth (mm)	24
Weight (g)	288

Lilliput OF70/C/T - 7" openframe USB Touchscreen monitor
