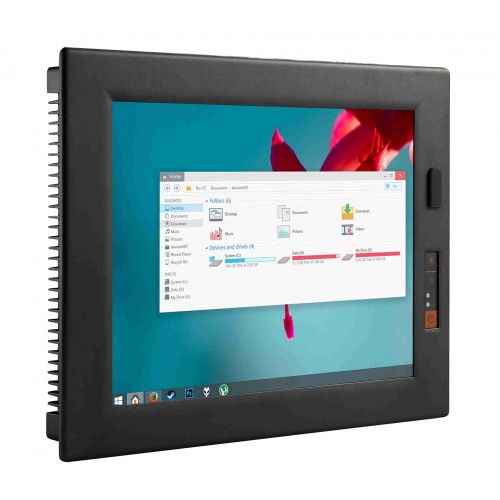

The PC1501 is a 15" panel PC with an Intel Atom D525 processor compatible with Windows 7 and Windows 10. Supporting a 5 wire touchscreen for additional stability and multiple mounting options, the PC1501 is ideal for industrial applicatations.
Intel Atom D525 processorThe PC1501 is fitted with the industrial standard Atom D525 processor, a superbly reliable processor that runs at low heat production but remaining high power for processor heavy applications. | |
Aluminium alloy frameThe PC1501 has a lightweight aluminum alloy comprising it's frame, giving it the strength to endure while still remaining lightweight for portable operations. | |
Built for industryThe PC1501 is a system designed around the industrial market, with it's metal outer frame, and 5 wire touchscreen - this system is reliable and tough at a fraction of the price of other industrial standard panel. | |
5 Wire resistive touchscreenWith a 5 wire resistive touchscreen the PC1501 is able to stand greater amounts of use without failing. | |
Multiple mounting optionsThe PC1501 can be mounted in a variety of ways - using the VESA mounting on the rear of the unit or flushmount the system using the front mounting clips. Also available - our rackmount mounting kits let you fit PC1501 into your rack system for server management you can count on. |
Panel PC Specifications | |
Processor | Intel D525 Processor 1.8Ghz |
RAM Memory | 2G DDR3 |
Storage | 32GB Internal SSD mSATA - up to 512Gb (optional) |
Graphics | Integrated |
Optical Drive | None (external USB optional) |
Networking | 10/100 LAN |
I/O Connections (additional) | USB 2.0 Port x 5 - Headphone Jack - DC Power Input - RS232 x 4/RS485 x 4 - LAN x 2 - |
Chassis | Aluminium outer chassis |
Screen Size (diagonal) | 15 inch |
Aspect Ratio | 4:3 |
Touchscreen Technology | 5 wire resistive |
Software Installed | None Intalled (Windows 7, 8, 10 optional) |
Input Power | 12V |
Mounting Options | VESA 75, Front Mount clips |
Contents Of Box | |
Product | PC1501 Panel PC |
Connection Cables | PS2 Adpator cables |
Power Adaptor | 12V Power Adaptor (UK, EU and US fittings available) |
Mounts and stands | Rear mounting bracket (optional) |
Additional accessories | Driver disk and touchscreen Software |
Dimensions | |
Height (mm) | 310 |
Width (mm) | 396 |
Depth (mm) | 52 |
Weight (g) | 4.6 kg |
