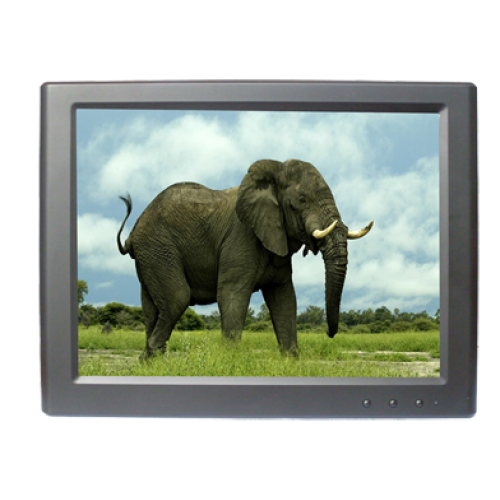

The Lilliput UM82/C/T is a 8” 4:3 LCD monitor featuring an innovative USB display technology.

	8” 4:3 USB monitor The Lilliput UM82/C/T monitor has an 4:3 type LCD designed for use with laptops and desktop PC systems
	Built in resistive touchscreen  The UM82/C/T features a 4 wire resistive touchscreen giving extra functionality for integrating into your system.
	USB Displaylink Powered  The Lillput UM82/C/T is powered by the flexible Displaylink system allowing you to connect a secondary monitor quickly and easily to your PC system by way of the USB connection.

---

	Entertainment and multimedia solutions. Lilliput USB monitors can be connected to many PC based multimedia systems giving you extra screen real estate when you need it most.
	Smart home solutions. Lilliput USB monitors can be integrated with PC systems for smart home control and monitoring.
	Vehicle installation solutions. Lilliput USB monitor can be installed as side monitors to car computers systems allowing even greater flexibility in your portable system.

Lilliput UM8X CE Certificate	Download
Lilliput UM8X LCD Panel Datasheet	Download
Lilliput UM8X Mechanical Drawing	Download

Monitor Specification
Screen Size (diagonal)	8 inch
Aspect Ratio	4:3
Native Resolution	800×600 (fixed)
Maximum Resolution
Pixel Pitch (mm)	0.0635×0.190
Scan Frequency (Hz)	60-72
Response Time (ms)	15
Viewing Angle (degrees)	140º x, 120º y
Brightness Ratio (cd/m2)	250
Contrast Ratio	500:1
Backlight	LED
Video Inputs	USB
Video Outputs
Audio Outputs	Built in speaker
Touchscreen Technology	4 wire resistive
Input Power	USB 5V, 500mA
Operating Temperature
Mounting Options
Contents Of Box
Product	1x UM82/C/T
Connection Cables	1x USB to Mini USB Cable
Power Adaptor
Mounts and stands
Additional accessories
Dimensions
Height (mm)	156
Width (mm)	200
Depth (mm)	25
Weight (g)	536

Lilliput UM82/C/T - 8" USB touchscreen monitor
