The Lilliput FA1042-NP/C is an 10.4 inch 4:3 TFT LCD monitor with VGA, composite video-in and desktop stand.

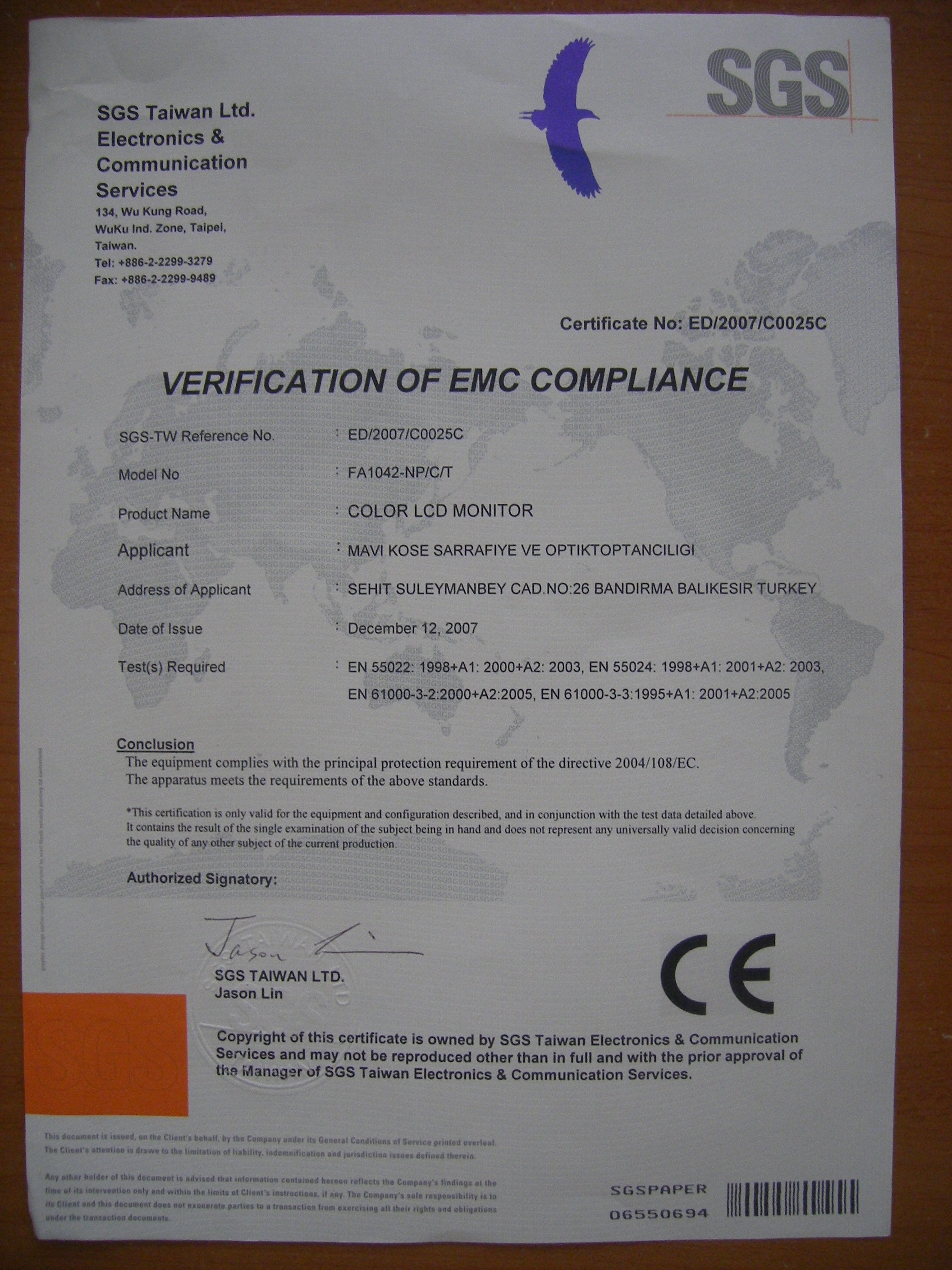

Lilliput FA1042 CE Certificate	Download
Lilliput FA1042 LCD Panel Datasheet	Download

Monitor Specification
Screen Size (diagonal)	10 inch
Aspect Ratio	4:3
Native Resolution	800×600 (native)
Maximum Resolution	1280×1024 (maximum)
Pixel Pitch (mm)	0.0635×0.190
Scan Frequency (Hz)	60-72
Response Time (ms)	25
Viewing Angle (degrees)	160º x, 160º y
Brightness Ratio (cd/m2)	300
Contrast Ratio	500:1
Backlight	LED
Video Inputs	VGA, composite
Video Outputs
Audio Outputs
Touchscreen Technology	None
Input Power	DC 12V
Operating Temperature	-20 to 60 deg C
Mounting Options	Desktop stand
Contents Of Box
Product	1x FA1042-NP/C
Connection Cables	2x Composite cable, 1x VGA and USB touch screen cable
Power Adaptor	1x 3-pin DC 12V plug
Mounts and stands	Desktop stand built-in
Additional accessories
Dimensions
Height (mm)
Width (mm)
Depth (mm)
Weight (g)
