Uninterrupted Power Supply is an electrical apparatus that provides emergency power to a load when the input power source, typically mains power, fails. The on-battery runtime of most uninterruptible power sources is relatively short but sufficient to start a standby power source or properly shut down the ODROID C1+/C2

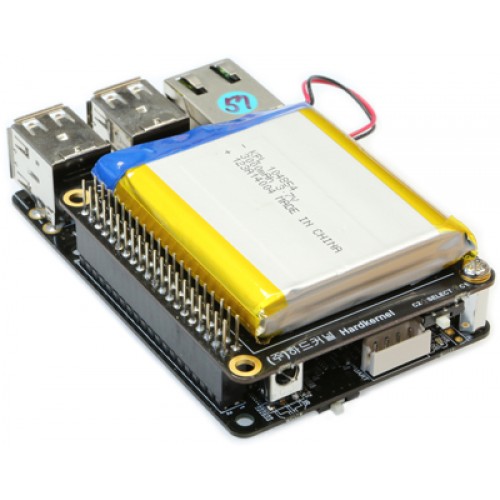

It is equipped with a rechargeable 3,000mAh Lithium Polymer battery and a charger with a booster IC for 5V output.

When the AC power source fails, the UPS2 keeps supplying the power to the ODROID-C1+/C2 with the battery. There is a digital output pin to notice the battery low-level warning to the ODROID-C1+/C2 to trigger the shutdown process. And the AC power source available, UPS3 will supply the power to the ODROID-C1+/C2+ again automatically.

It will significantly reduce the risk of data loss by sudden power-down.

PLEASE NOTE: PLEASE HANDLE WITH CARE. CONNECTING THE UPS INCORRECTLY CAN DESTROY YOUR ODROID BOARD

PACKAGE INCLUDES :

- 3000mAh battery pack
- DC Plug Cable soldered UPS3 board
- 3pin jumper wire (11mm)

- 5V/2A Power Supply
