What’s Orange Pi 2?
It’s an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian, Raspberry Pi Image, as well as the banana pi Image. It uses the AllWinner H3 SoC, and has 1GB DDR3 SDRAM
What can I do with Orange Pi 2?
Build…
- A computer
- A wireless server
- Games
- Music and sounds
- HD video
- A speaker
- Android
- Scratch
- Pretty much anything else, because Orange Pi 2 is open source
Who’s it for?
Orange Pi 2 is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.
Hardware specification | ||
CPU | H3 Quad-core Cortex-A7 H.265/HEVC 4K | |
GPU | ·Mali400MP2 GPU @600MHz | |
Memory (SDRAM) | 1GB DDR3 (shared with GPU) | |
Onboard Storage | TF card (Max. 64GB) / MMC card slot | |
Onboard Network | 10/100M Ethernet RJ45 | |
Onboard WIFI | Realtek RTL8189ETV, IEEE 802.11 b/g/n | |
Video Input | A CSI input connector Camera: | |
Audio Input | MIC | |
Video Outputs | Supports HDMI output with HDCP | |
Audio Output | 3.5 mm Jack and HDMI | |
Power Source | DC input can supply power, but USB OTG input don’t supply power | |
USB 2.0 Ports | Four USB 2.0 HOST, one USB 2.0 OTG | |
Buttons | Power Button(SW4), Recovery Button(SW2) UBoot Button(SW3) | |
Low-level peripherals | 40 Pins Header,compatible with Raspberry Pi B+ | |
GPIO(1x3) pin | UART, ground. | |
LED | Power led & Status led | |
Key | IR input,UBOOT,POWER | |
Supported OS | Android Ubuntu, Debian, Rasberry Pi Image | |

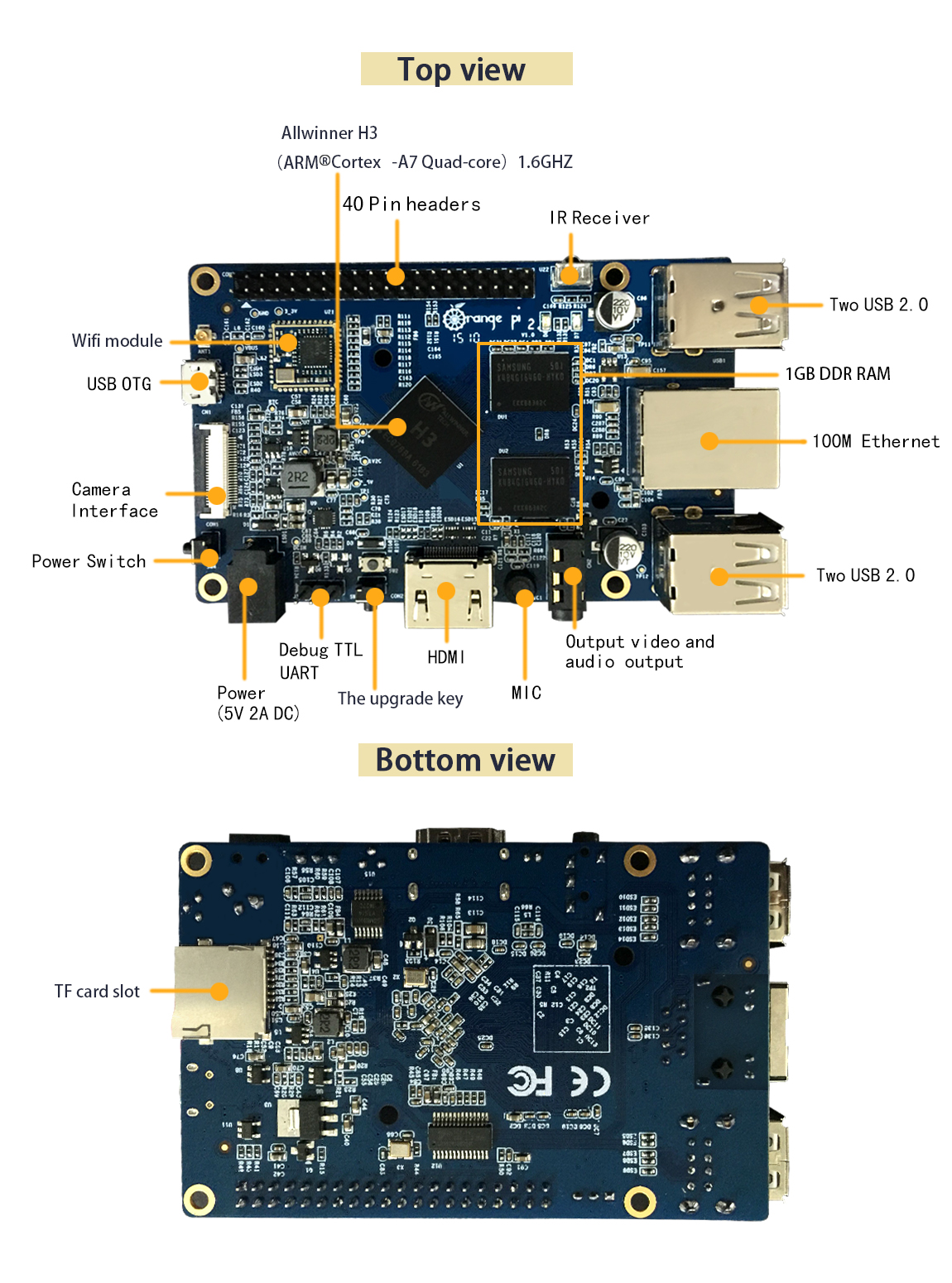

Interface definition | ||
Product size | 93 mm × 60mm | |
Weight | 46g | |
